ANG Patriot Plane

Lighter, Faster, Less Fuel – Than Any Other Plane

Stay Updated

The world’s first true 5-adult airplane

Offering full luggage capacity, full fuel, and an impressive 1,200 NM range

  • Full Carbon Fiber Aircraft, only metal is the landing gear, engine mount, hinges and some screws.
  • Only 838 lbs empty
  • 1,262 – 1,500 lbs useful load
  • 186 knots cruise at 12,000 ft with 9 GPH of Car or 100LL Gas
  • Glide ratio of 18:1 at a speed of 92 ktas
  • Tested in strong conditions: flew in up to 43 kt headwinds and 29 kt crosswinds.
  • Usual operational envelope: 29 kt headwind, 19 kt crosswind.
  • Retractable landing gear (with shock absorption system). Allows to develop higher flight speed and have lower fuel consumption compared to fixed landing gear
  • Increased flap area. Reduces takeoff and landing speed – 43 knots
  • Computer airborne warning systems. Excludes possible piloting errors (forbidden takeoff weight, unsafe landing gear, etc.)
  • The airplane is equipped with a modern GRS 6 800-990 SDS parachute rescue system manufactured by Czech company Galaxy GRS s.r.o.
  • Good noise isolation level. Gives passengers the possibility to have a good time during business flights or vacation flights with near and dear ones

Kits Prices

$397,000 USD

Includes Our Build Center Fast Build Assist

$297,000 USD

Everything Needed to Build Yourself, Engine, Avionics and All Parts

$217,000 USD

Ultra-Fast Build Kit Includes Everything Except Engine and Avionics
Click Here for Kit Info
Specification Rotax 915iS EP 918 Ti
Engine Rotax 915iS EP 918 Ti
Horsepower 141 HP 185 HP
Cruise Speed 186 knots 200 knots
Operating Altitude 12,000 ft 12,000 ft
Fuel Consumption 9 gph 9 gph
Max Range 1,200 nm 1,200 nm
Useful Load 1,262 lbs 1,500 lbs
ANG Build Assist Price $347,000 $372,000
SpecificationRotax 915iSEP 918 Ti
EngineRotax 915iSEP 918 Ti
Horsepower141 HP185 HP
Cruise Speed186 knots200 knots
Operating Altitude12,000 ft12,000 ft
Fuel Consumption9 gph9 gph
Max Range1,200 nm1,200 nm
Useful Load1,262 lbs1,500 lbs
ANG Build Assist Price$397,000$422,000

Specifications

SpecificationValue
EngineRotax 915iS 141 HP
Type of FuelAutomobile Ð-92, Ð-95, Ð-98, 100LL
Propeller3-blade, Constant Speed Carbon Prop
Landing GearThree-strut Hydraulic Retractable
Landing Gear Track6.2 ft
Wheels Size8 inch
Specification Value
Engine Rotax 915iS 141 HP
Type of Fuel Automobile Ð-92, Ð-95, Ð-98, 100LL
Propeller 3-blade, Constant Speed Carbon Prop
Landing Gear Three-strut Hydraulic Retractable
Landing Gear Track 6.2 ft
Wheels Size 8 inch

Specifications

Specification Value
Engine Rotax 915iS 141 HP
Type of Fuel Automobile Ð-92, Ð-95, Ð-98, 100LL
Propeller 3-blade, Constant Speed Carbon Prop
Landing Gear Three-strut Hydraulic Retractable
Landing Gear Track 6.2 ft
Wheels Size 8 inch

Dimensions

Specification Value
Wingspan 31.5 ft
Wing Area 116.25 sq ft
Cabin Width 52 inches
Headroom 47 inches
Luggage Compartment (2 people) 5.7 ft length / 2.8 ft width, 330 lbs
Luggage Compartment (5 people) 5.7 ft length / 2.8 ft width, 110 lbs

Performance

Specification Value
VNE 216 knots
Fast Cruise Speed 186 knots
Peak Speed 194 knots
Cruise Speed (65% Power) 167 knots
Cruise Speed (55% Power) 156 knots
Landing Speed 43 knots
Climbing Rate 1,378 ft/min
VX (Best Angle of Climb) 75 ktas, 1,770 ft/min climb (2 people)
VY (Best Rate of Climb) 81 ktas, 1,700 ft/min climb (2 people)
Takeoff Distance 790 ft
Landing Distance 492 ft

Weights & Capacities

Specification Value
Maximum Takeoff Weight 2,095 lbs
Empty Weight 838 lbs
Useful Load 1,262 lbs
Fuel Tank Volume 65 gallons
Wing Loading 18 lbs/sq ft

Options

Option Price
Electric Air Conditioning $15,000
Buenos De-Ice – Heated Prop $3,000
Buenos De-Ice – Wing-Only Deice $30,000
Buenos De-Ice – Wing & Tail Deice $35,000
Buenos De-Ice – Comprehensive Deice $40,000
IceSight – Heated Prop $3,000
IceSight – Wing-Only Deice $35,000
IceSight – Wing & Tail Deice $40,000
IceSight – Comprehensive Deice $45,000

Engine Options

Option Price
Chinese Rotax Knock-Off Included
Aerovolare 160 HP Suzuki 1.5L Turbo Minus $5,000
Edge Performance EP918Ti 185 HP (Based on Rotax 916iS) $25,000 + 7k tariffs
Rotax 915 Starting at $15,000
Rotax 916 Starting at $20,000
Turbo Prop Starting at $50,000
Mfly – Italy Additional $5,000
Other $30,000 Price Credit

Avionics

Avionics
2 Garmin G3X Touch Flight Displays
Garmin GNX 375 GPS Navigator and ADS-B Transponder “In”/”Out”
Garmin GMA 245R Remote-mount Audio System for G3X Touch
Garmin GTR 20 Remote Mount Comm Radio
Garmin GMC 507 Autopilot Control Head
Garmin GEA 24 Engine Indication System (EIS)

Delivery

Delivery Option Estimated Time
Kit 9-12 months
Build Assist 9-12 months

Dimensions

SpecificationValue
Wingspan31.5 ft
Wing Area116.25 sq ft
Cabin Width52 inches
Headroom47 inches
Luggage Compartment (2 people)5.7 ft length / 2.8 ft width, 330 lbs
Luggage Compartment (5 people)5.7 ft length / 2.8 ft width, 110 lbs
Specification Value
Wingspan 31.5 ft
Wing Area 116.25 sq ft
Cabin Width 52 inches
Headroom 47 inches
Luggage Compartment (2 people) 5.7 ft length / 2.8 ft width, 330 lbs
Luggage Compartment (5 people) 5.7 ft length / 2.8 ft width, 110 lbs

Performance

SpecificationValue
VNE216 knots
Fast Cruise Speed186 knots
Peak Speed194 knots
Cruise Speed (65% Power)167 knots
Cruise Speed (55% Power)156 knots
Landing Speed43 knots
Climbing Rate1,378 ft/min
VX (Best Angle of Climb)75 ktas, 1,770 ft/min climb (2 people)
VY (Best Rate of Climb)81 ktas, 1,700 ft/min climb (2 people)
Takeoff Distance790 ft
Landing Distance492 ft
Specification Value
VNE 216 knots
Fast Cruise Speed 186 knots
Peak Speed 194 knots
Cruise Speed (65% Power) 167 knots
Cruise Speed (55% Power) 156 knots
Landing Speed 43 knots
Climbing Rate 1,378 ft/min
VX (Best Angle of Climb) 75 ktas, 1,770 ft/min climb (2 people)
VY (Best Rate of Climb) 81 ktas, 1,700 ft/min climb (2 people)
Takeoff Distance 790 ft
Landing Distance 492 ft

Weights & Capacities

SpecificationValue
Maximum Takeoff Weight2,095 lbs
Empty Weight838 lbs
Useful Load1,262 lbs
Fuel Tank Volume65 gallons
Wing Loading18 lbs/sq ft
Specification Value
Maximum Takeoff Weight 2,095 lbs
Empty Weight 838 lbs
Useful Load 1,262 lbs
Fuel Tank Volume 65 gallons
Wing Loading 18 lbs/sq ft

Options

OptionPrice
Electric Air Conditioning$15,000
Buenos De-Ice – Heated Prop$3,000
Buenos De-Ice – Wing-Only Deice$30,000
Buenos De-Ice – Wing & Tail Deice$35,000
Buenos De-Ice – Comprehensive Deice$40,000
IceSight – Heated Prop$3,000
IceSight – Wing-Only Deice$35,000
IceSight – Wing & Tail Deice$40,000
IceSight – Comprehensive Deice$45,000
Option Price
Electric Air Conditioning $15,000
Buenos De-Ice – Heated Prop $3,000
Buenos De-Ice – Wing-Only Deice $30,000
Buenos De-Ice – Wing & Tail Deice $35,000
Buenos De-Ice – Comprehensive Deice $40,000
IceSight – Heated Prop $3,000
IceSight – Wing-Only Deice $35,000
IceSight – Wing & Tail Deice $40,000
IceSight – Comprehensive Deice $45,000

Engine Options

OptionPrice
Chinese Rotax Knock-OffIncluded
Aerovolare 160 HP Suzuki 1.5L TurboMinus $5,000
Edge Performance EP918Ti 185 HP (Based on Rotax 916iS)$25,000 + 7k tariffs
Rotax 915Starting at $15,000
Rotax 916Starting at $20,000
Turbo PropStarting at $50,000
Mfly – ItalyAdditional $5,000
Other$30,000 Price Credit
Option Price
Chinese Rotax Knock-Off Included
Aerovolare 160 HP Suzuki 1.5L Turbo Minus $5,000
Edge Performance EP918Ti 185 HP (Based on Rotax 916iS) $25,000 + 7k tariffs
Rotax 915 Starting at $15,000
Rotax 916 Starting at $20,000
Turbo Prop Starting at $50,000
Mfly – Italy Additional $5,000
Other $30,000 Price Credit

Avionics

2x Dynon SkyView HDX 10” Displays
Dynon ADAHRS Module + Dynon Remote Magnetometer
Dynon GPS Antenna/Receiver
Dynon Engine Monitoring Module
Dynon Mode S Transponder (ADS-B Out)
Dynon Traffic & Weather Receiver (ADS-B In)
Dynon COM Transceiver + Dynon COM Control Panel
Dynon Autopilot Panel + 2 Dynon Servos (Pitch & Roll)
Dynon Heated AoA/Pitot System with Controller
Garmin GPS Navigator + Dynon ARINC-429 Interface
Avionics
2 Garmin G3X Touch Flight Displays
Garmin GNX 375 GPS Navigator and ADS-B Transponder “In”/”Out”
Garmin GMA 245R Remote-mount Audio System for G3X Touch
Garmin GTR 20 Remote Mount Comm Radio
Garmin GMC 507 Autopilot Control Head
Garmin GEA 24 Engine Indication System (EIS)

Delivery

Delivery OptionEstimated Time
Kit1 year
Build Assist2 years
Delivery Option Estimated Time
Kit 9-12 months
Build Assist 9-12 months

View ANG_Patriot_Interior

View ANG Flight Manual

View ANG Maintenance Manual

View ANG Build Manual

View ANG Build Manual 5-4-25

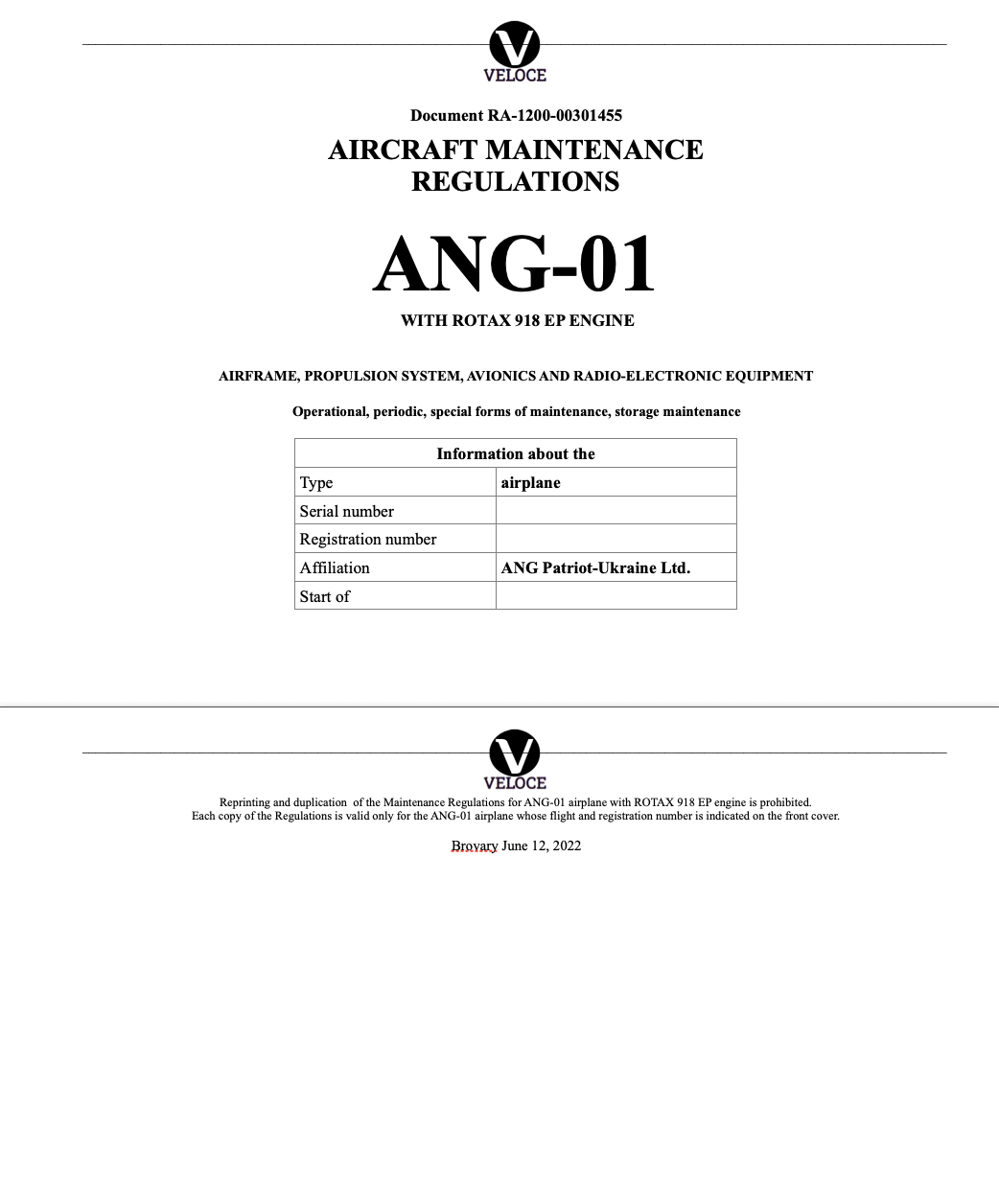

View Aircraft Maintenance Manual

View Conditional Inspection Form

View Construction Manual and Technical Details

View POH Pilot Operating Handbook

View Quality Assurance Manual

View Veloce ANG Patriot Training Guide Feb 2025

View Weight and Balance Guide

View the latest updates on ANG builds

ANG Interior Options

Comparison

CategoryANG PatriotSling TSiSling 4Vans RV-10Lancair MakoMCR 4S EvolutionPipistrel PantheraCirrus SR22TDiamond DA40Mooney Acclaim
CompanyVeloce PlanesSling AircraftSling AircraftVan’s AircraftLancair InternationalSE AviationPipistrelCirrus AircraftDiamond AircraftMooney International
Websiteveloceplanes.comslingaircraft.comslingaircraft.comvansaircraft.comlancair.commcr.aeropipistrel-aircraft.comcirrusaircraft.comdiamondaircraft.commooney.com
Seating Capacity5 adults4 adults4 adults4 adults4 adults4 adults4 adults4-5 adults4 adults4 adults
Total Price$422,000$330,000 – $400,000$200,000 – $330,000$160,000 – $225,000$350,000 – $475,000$350,000 – $500,000$600,000 – $700,000$888,000 – $1m$400,000 – $600,000$769,000
Build Time800 hours900 – 1,400 hours900 – 1,200 hours2,000 hours1,000 hours700 hours1,800 hoursN/AN/A1,000 – 2,000 hours
EngineEP 918TiRotax 916iSRotax 914 UL TurboLycoming IO-540Lycoming IO-540ROTAX 915 ISLycoming IO-540Continental TSIO-550-K TLycoming IO-360 M1-AContinental TSIO-550-G
Horsepower185 hp160 hp115 hp260 hp300 hp141 hp260 hp315 hp180 hp280 hp
Max Cruise Speed201 knots155 knots135 knots181 knots220 knots153 knots195 knots213 knots142 knots242 knots
Cruise Speed167 knots153 knots130 knots171 knots190 knots132 knots185 knots184 knots137 knots237 knots
Stall Speed43 knots58 knots55 knots55 knots68 knots46 knots61 knots60 knots52 knots56 knots
Range1,200 nm1,000 nm700 nm825 nm1,400 nm1,151 nm920 nm1,021 nm847 nm1,275 nm
Climb Rate1,578 fpm1,200 fpm800 fpm1,450 fpm2,000 fpm1,200 fpm1,260 fpm1,203 fpm780 fpm1,375 fpm
Service Ceiling23,622 ft18,000 ft15,000 ft20,000 ft28,000 ft28,000 ft18,000 ft25,000 ft16,400 ft25,000 ft
Takeoff Distance590 ft591 ft720 ft500 ft600 ft1,148 ft2,156 ft1,517 ft1,000 ft2,100 ft
Landing Distance492 ft492 ft460 ft650 ft800 ft2,000 ft2,316 ft1,178 ft951 ft2,650 ft
Empty Weight838 lbs1,148 lbs1,036 lbs1,600 lbs2,200 lbs882 lbs1,949 lbs2,354 lbs1,746 lbs2,370 lbs
Useful Load1,262 lbs939 lbs992 lbs1,100 lbs1,350 lbs992 lbs1,049 lbs1,246 lbs900 lbs1,000 lbs
Maximum Weight2,095 lbs2,094 lbs2,028 lbs2,700 lbs3,550 lbs1,808 lbs2,999 lbs3,600 lbs2,646 lbs3,368 lbs
Fuel Capacity65 gallons52 gallons43 gallons60 gallons75 – 109 gallons53 gallons82 gallons92 gallons50 gallons89 gallons
Cabin Width52 inches46.8 inches45.3 inches48 inches46 inches46 inches47 inches49 inches44 inches43.5 inches
Wingspan31.5 ft31.3 ft32.58 ft31.9 ft36.7 ft28.5 ft35.8 ft38.4 ft39.2 ft36.6 ft
Length24 ft23.54 ft23.38 ft24.5 ft25 ft22 ft26.6 ft26 ft26.3 ft26.8 ft
Height8 ft8 ft8 ft8.8 ft7.8 ft6.5 ft7.2 ft8.11 ft6.6 ft8.4 ft
Wing Loading18 lbs/sq ft16.91 lbs/sq ft14.4 lbs/sq ft18.6 lbs/sq ft25.4 lbs/sq ft18.75 lbs/sq ft23.97 lbs/sq ft24.8 lbs/sq ft18.2 lbs/sq ft19.26 lbs/sq ft
Category ANG Patriot Sling TSi Sling 4 Vans RV-10 Lancair Mako MCR 4S Evolution Pipistrel Panthera Cirrus SR22T Diamond DA40 Mooney Acclaim
Company Veloce Planes Sling Aircraft Sling Aircraft Van’s Aircraft Lancair International SE Aviation Pipistrel Cirrus Aircraft Diamond Aircraft Mooney International
Website veloceplanes.com slingaircraft.com slingaircraft.com vansaircraft.com lancair.com mcr.aero pipistrel-aircraft.com cirrusaircraft.com diamondaircraft.com mooney.com
Seating Capacity 5 adults 4 adults 4 adults 4 adults 4 adults 4 adults 4 adults 4-5 adults 4 adults 4 adults
Total Price $372,000 $330,000 – $400,000 $200,000 – $330,000 $160,000 – $225,000 $350,000 – $475,000 $350,000 – $500,000 $600,000 – $700,000 $888,000 – $1m $400,000 – $600,000 $769,000
Build Time 800 hours 900 – 1,400 hours 900 – 1,200 hours 2,000 hours 1,000 hours 700 hours 1,800 hours N/A N/A 1,000 – 2,000 hours
Engine EP 918Ti Rotax 916iS Rotax 914 UL Turbo Lycoming IO-540 Lycoming IO-540 ROTAX 915 IS Lycoming IO-540 Continental TSIO-550-K T Lycoming IO-360 M1-A Continental TSIO-550-G
Horsepower 185 hp 160 hp 115 hp 260 hp 300 hp 141 hp 260 hp 315 hp 180 hp 280 hp
Max Cruise Speed 201 knots 155 knots 135 knots 181 knots 220 knots 153 knots 195 knots 213 knots 142 knots 242 knots
Cruise Speed 167 knots 153 knots 130 knots 171 knots 190 knots 132 knots 185 knots 184 knots 137 knots 237 knots
Stall Speed 43 knots 58 knots 55 knots 55 knots 68 knots 46 knots 61 knots 60 knots 52 knots 56 knots
Range 1,200 nm 1,000 nm 700 nm 825 nm 1,400 nm 1,151 nm 920 nm 1,021 nm 847 nm 1,275 nm
Climb Rate 1,578 fpm 1,200 fpm 800 fpm 1,450 fpm 2,000 fpm 1,200 fpm 1,260 fpm 1,203 fpm 780 fpm 1,375 fpm
Service Ceiling 23,622 ft 18,000 ft 15,000 ft 20,000 ft 28,000 ft 28,000 ft 18,000 ft 25,000 ft 16,400 ft 25,000 ft
Takeoff Distance 590 ft 591 ft 720 ft 500 ft 600 ft 1,148 ft 2,156 ft 1,517 ft 1,000 ft 2,100 ft
Landing Distance 492 ft 492 ft 460 ft 650 ft 800 ft 2,000 ft 2,316 ft 1,178 ft 951 ft 2,650 ft
Empty Weight 838 lbs 1,148 lbs 1,036 lbs 1,600 lbs 2,200 lbs 882 lbs 1,949 lbs 2,354 lbs 1,746 lbs 2,370 lbs
Useful Load 1,262 lbs 939 lbs 992 lbs 1,100 lbs 1,350 lbs 992 lbs 1,049 lbs 1,246 lbs 900 lbs 1,000 lbs
Maximum Weight 2,095 lbs 2,094 lbs 2,028 lbs 2,700 lbs 3,550 lbs 1,808 lbs 2,999 lbs 3,600 lbs 2,646 lbs 3,368 lbs
Fuel Capacity 65 gallons 52 gallons 43 gallons 60 gallons 75 – 109 gallons 53 gallons 82 gallons 92 gallons 50 gallons 89 gallons
Cabin Width 52 inches 46.8 inches 45.3 inches 48 inches 46 inches 46 inches 47 inches 49 inches 44 inches 43.5 inches
Wingspan 31.5 ft 31.3 ft 32.58 ft 31.9 ft 36.7 ft 28.5 ft 35.8 ft 38.4 ft 39.2 ft 36.6 ft
Length 24 ft 23.54 ft 23.38 ft 24.5 ft 25 ft 22 ft 26.6 ft 26 ft 26.3 ft 26.8 ft
Height 8 ft 8 ft 8 ft 8.8 ft 7.8 ft 6.5 ft 7.2 ft 8.11 ft 6.6 ft 8.4 ft
Wing Loading 18 lbs/sq ft 16.91 lbs/sq ft 14.4 lbs/sq ft 18.6 lbs/sq ft 25.4 lbs/sq ft 18.75 lbs/sq ft 23.97 lbs/sq ft 24.8 lbs/sq ft 18.2 lbs/sq ft 19.26 lbs/sq ft

Wing Test
